TRAMSPREAD SPREAD BARS

Available in spread widths from 8m (single outlet), through 12m (twin outlet) up to 24m (triple outlet), Tramspread spread bars are built to a high quality and are fully galvanised.

With attention to setting of height and output angle on the twin outlet boom it is possible to produce a spread pattern with a coefficient of variation of below 20% in the field. A low-level spread with large droplets ensures even distribution of slurry. Reduced drift eliminates environmental nuisance caused by smell.

  • Galvanised, heavy duty construction
  • Hydraulic vertical folding allows access to tractor pick-up hitch
  • Auto transport safety latches with securing pins
  • 3-point linkage with female A-frame
  • Twin hydraulic sluice valves for left and right slurry control
  • Front mounted swinging arm permits U-turn
MAKE AN ENQUIRY

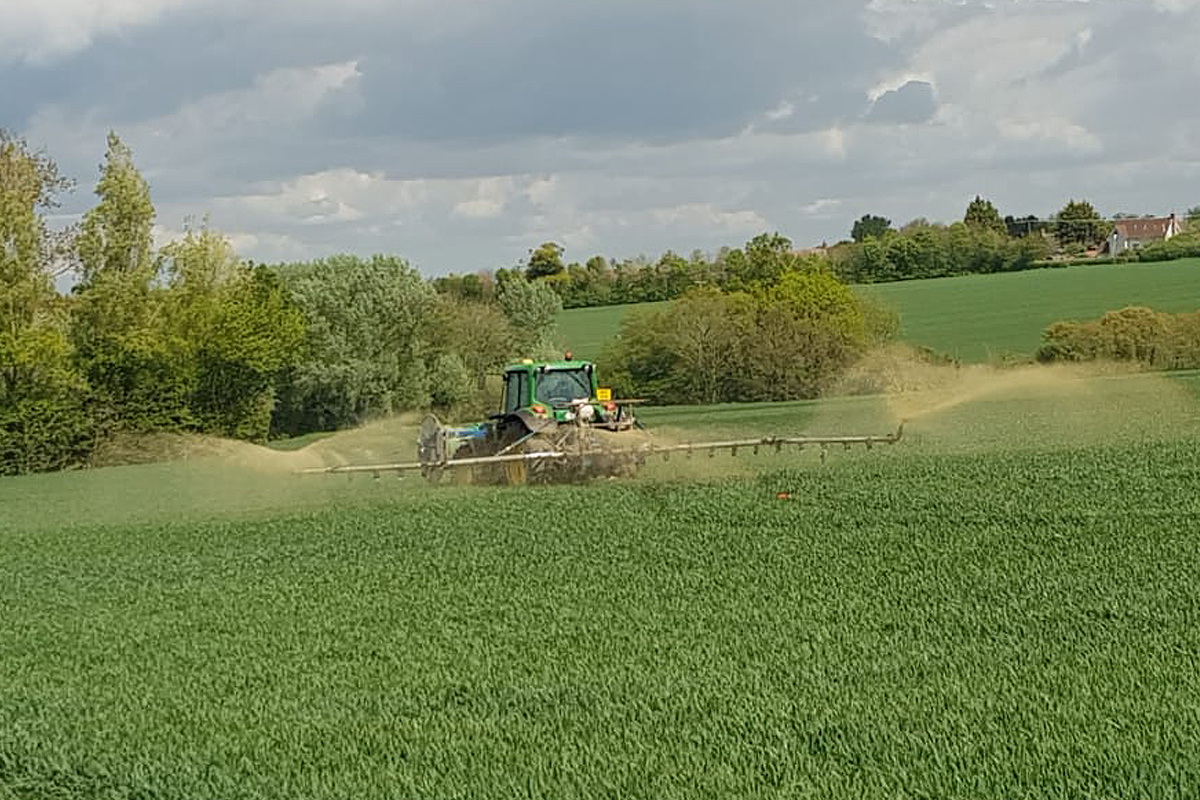

Tramspread 3m Nozzle Spreader

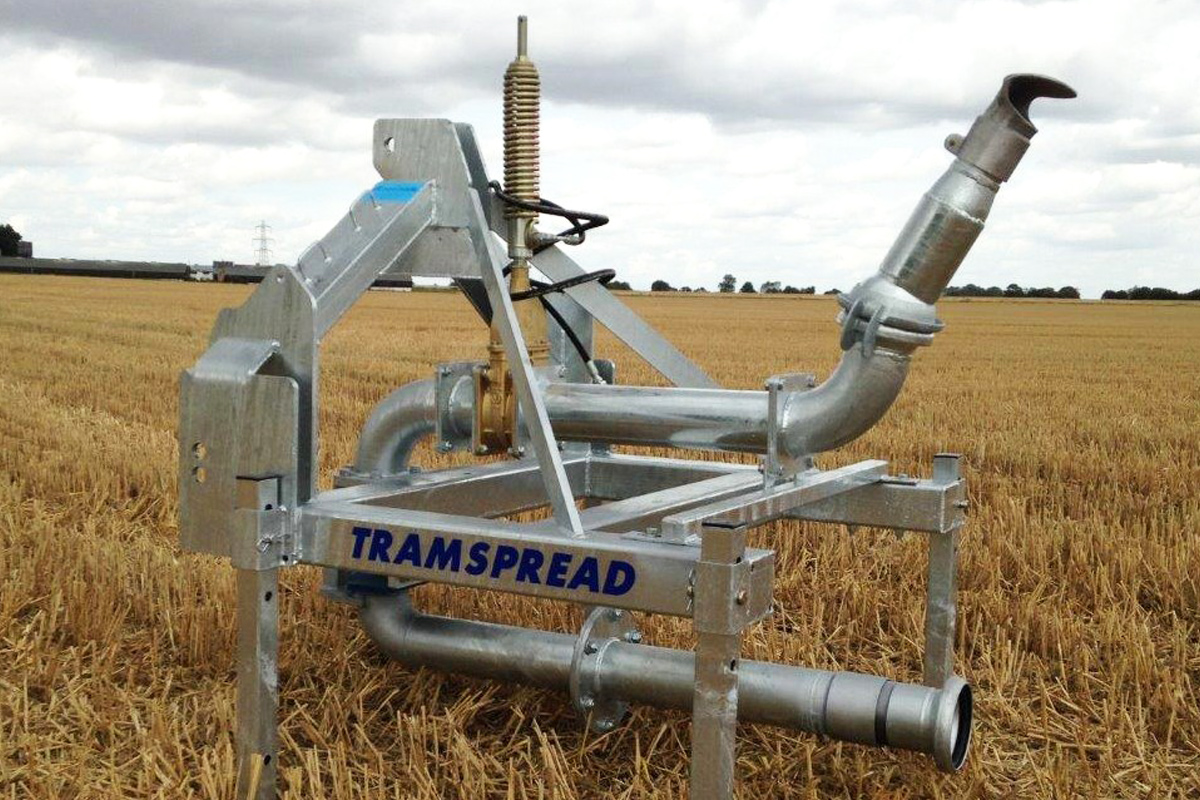

Tramspread Single Jet Nozzle Spreader

MAKE AN ENQUIRY

If you have an enquiry and would like help with your slurry and digestate management then please fill in this form and one of our specialists will be in contact as soon as possible.
